backgroundGradient

Multi-stop linear gradient background. Composed on the fly.

Format

backgroundGradient=linear:<angleDegrees>:<color1>-<offset1>,<color2>-<offset2>[,...]
FieldDescription
linearGradient type (only one currently supported)
angleDegreesGradient angle: 0 = bottom→top, 90 = left→right, 180 = top→bottom, 270 = right→left
color-offsetHex color + offset between 0 and 1 (stop position)

Minimum 2 stops required.

API examples

Vertical navy

GET https://api.aeromodel.dash-systems.fr/v1/images/plane?api-key=YOUR_KEY&plane=A380&airline=EK&backgroundGradient=linear:0:%23001a33-0,%23003366-1

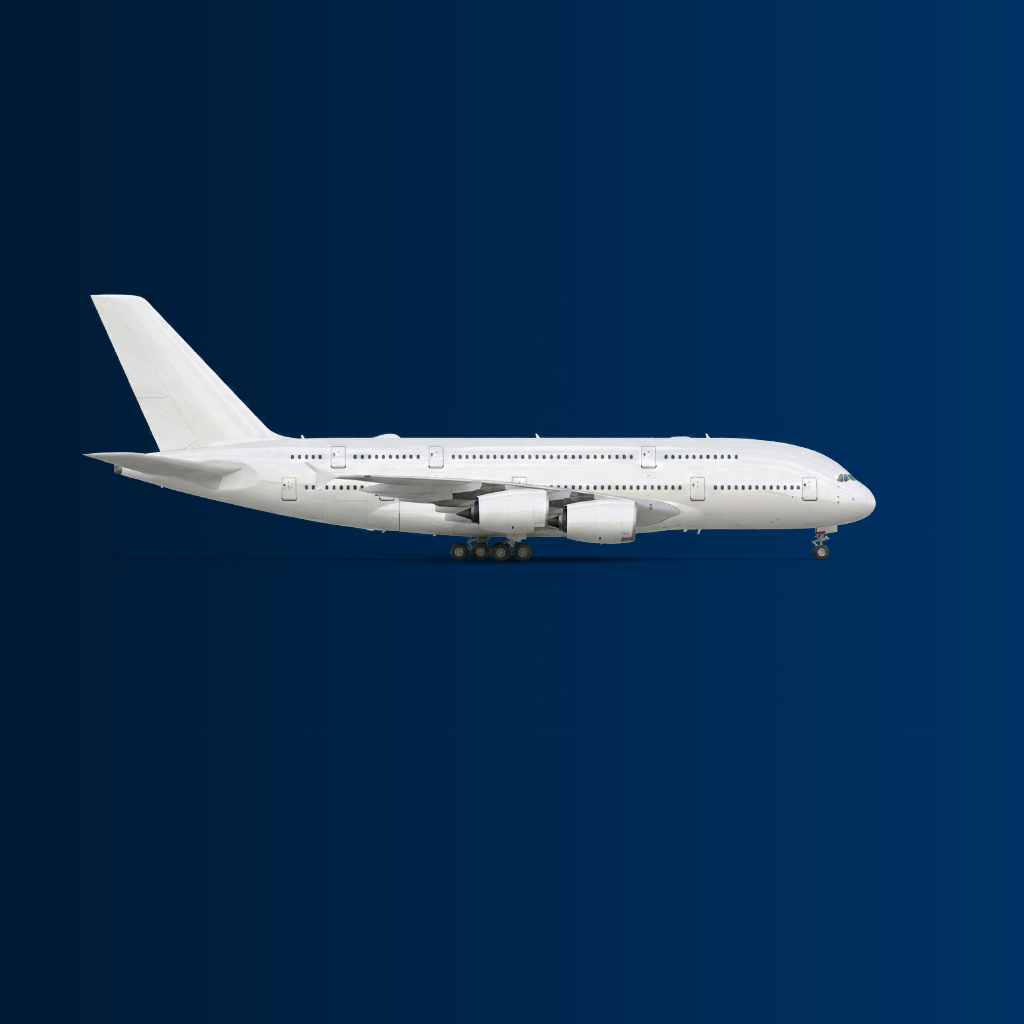

Blue gradient

Horizontal sunset

GET https://api.aeromodel.dash-systems.fr/v1/images/plane?api-key=YOUR_KEY&plane=A320&airline=AF&backgroundGradient=linear:90:%23ff7e5f-0,%23feb47b-1

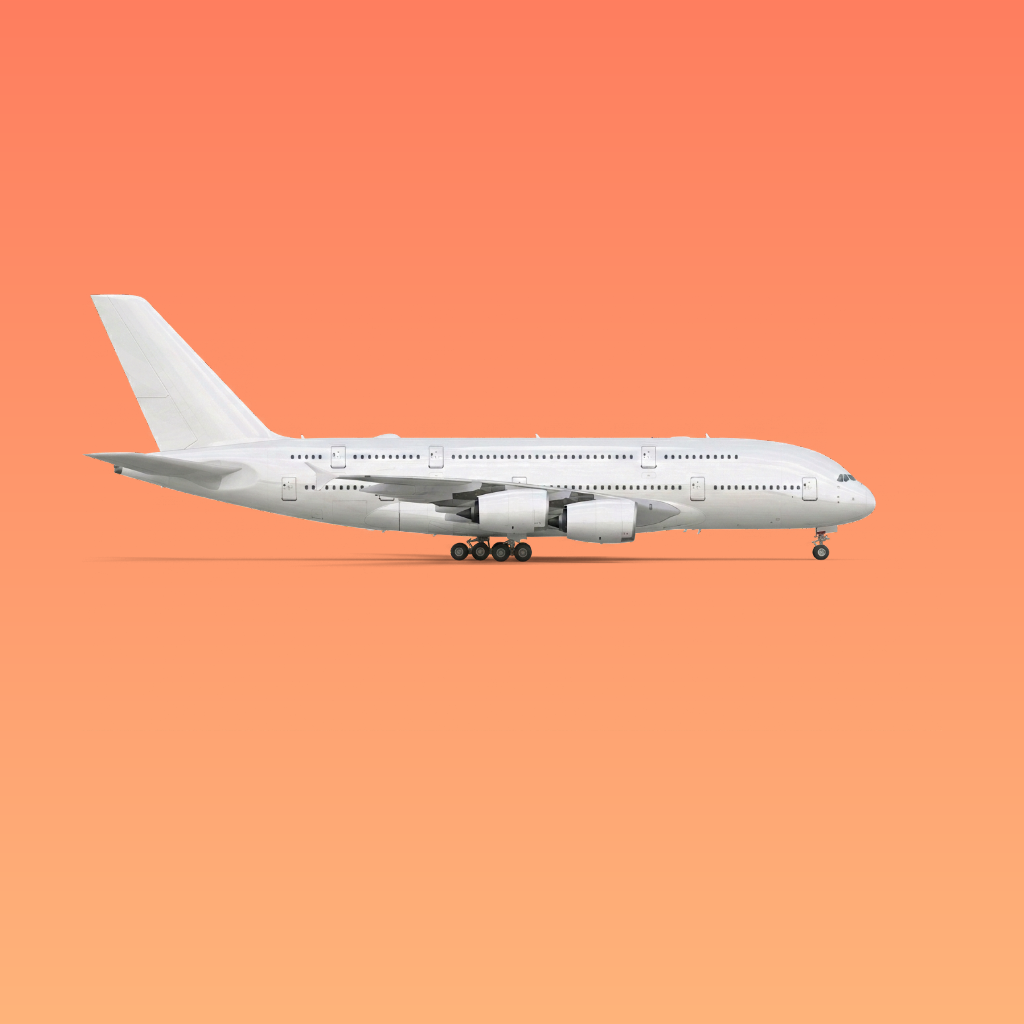

Sunset gradient

Diagonal tri-color

GET https://api.aeromodel.dash-systems.fr/v1/images/plane?api-key=YOUR_KEY&plane=A320&airline=AF&backgroundGradient=linear:45:%23001a33-0,%23004488-0.5,%23ff9f1c-1

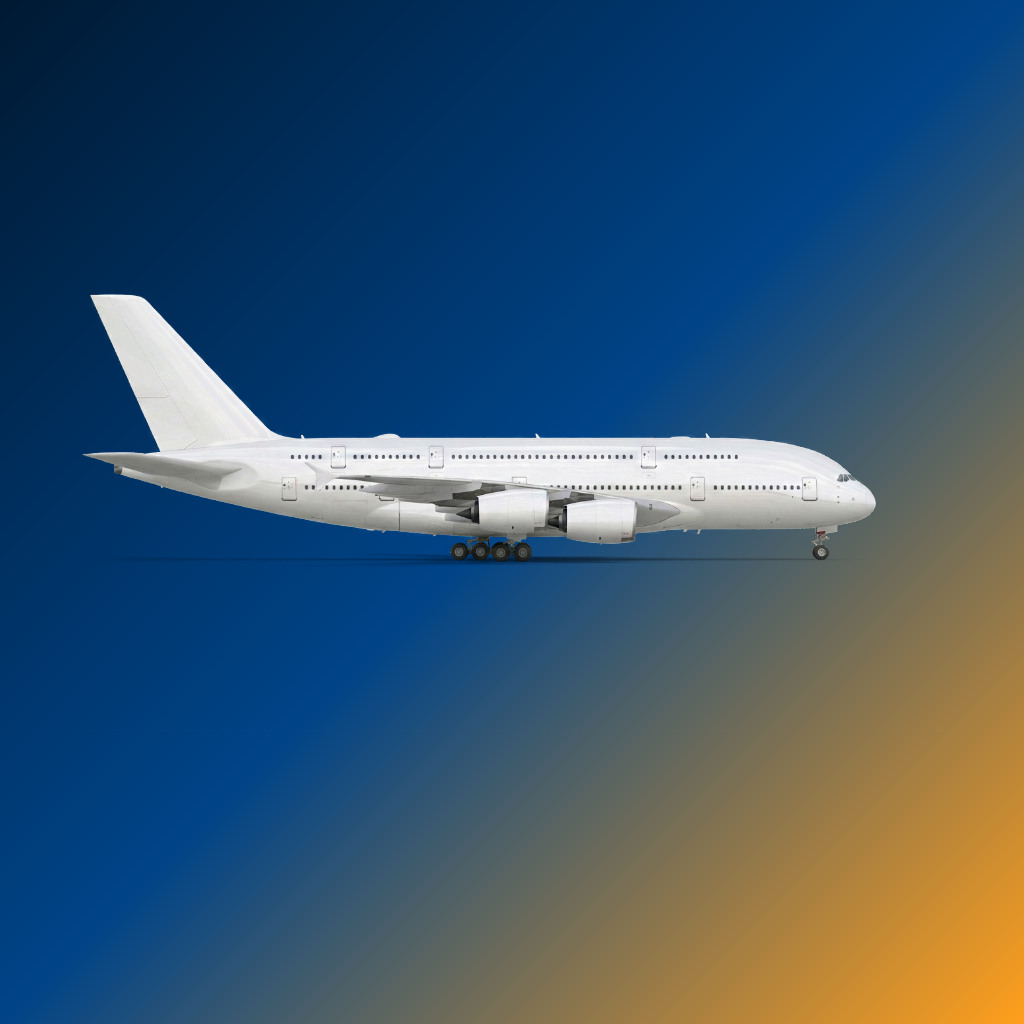

Tri-color gradient

URL encoding

The # of hex colors must be encoded as %23. Full example:

GET https://api.aeromodel.dash-systems.fr/v1/images/plane?api-key=YOUR_KEY&plane=A380&airline=EK&backgroundGradient=linear:0:%23001a33-0,%23003366-1

Typical combinations

EffectSpec
Day skylinear:0:%2387ceeb-0,%23ffffff-1
Night skylinear:0:%23000010-0,%23001a33-1
Sunsetlinear:90:%23ff7e5f-0,%23feb47b-1
Auroralinear:0:%23ff9966-0,%23ff5e62-0.5,%23845ec2-1
French flaglinear:90:%23002395-0,%23ffffff-0.5,%23ed2939-1

Precedence

If background AND backgroundGradient are both provided: backgroundGradient wins.

Errors

GET https://api.aeromodel.dash-systems.fr/v1/images/plane?api-key=YOUR_KEY&plane=A320&backgroundGradient=foo&format=json
→ 400 { "details": ["backgroundGradient must be linear:<deg>:<color>-<offset>,..."] }

Causes:

  • Type ≠ linear
  • Non-numeric angle
  • < 2 stops
  • Offset outside [0, 1]
  • Invalid hex color

Response header

x-compose-background: gradient:linear
